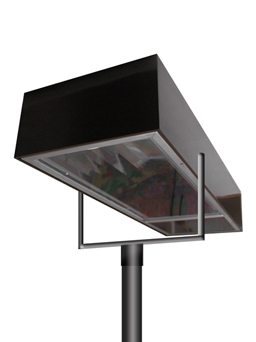

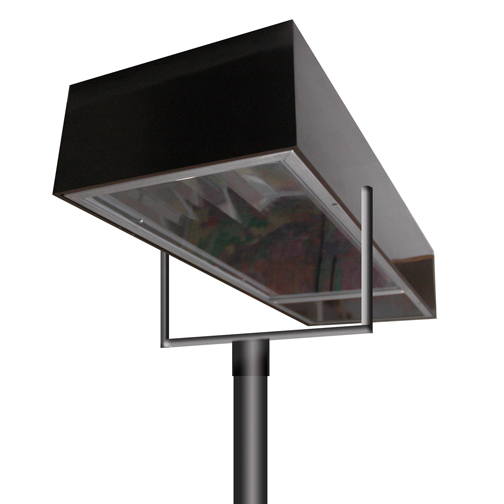

DY

Product Details
Housing   Heavy wall extruded aluminum, internally sealed for weather proofing. Closed cell neoprene foam gasket is applied between lens frame and housing.
Lens   .125” clear polycarbonate or clear tempered glass, sealed into mill finish aluminum frame with silicone. Lens frame is hinged and secured with two stainless quarter turn fasteners.
Reflector   Specular aluminum, available on type 3 and 5 light distribution.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Two Lamp
     L - Low Pressure Sodium
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Lens
     FG - Flat Glass
     FP - Flat Polycarbonate
6. Mounting
7. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
8. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
