Specification Sheet

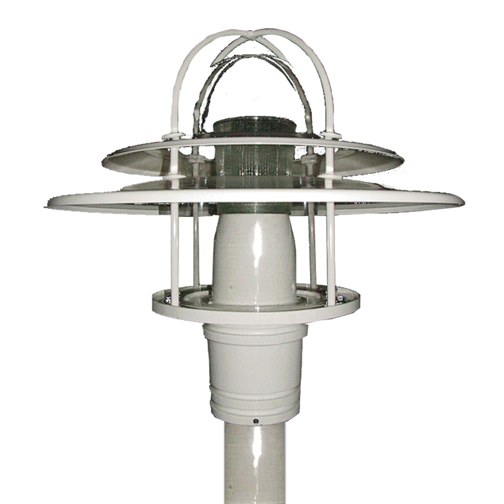

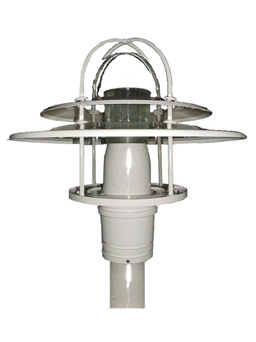

PEB & PEC

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness.
Reflector   Heavy gauge spun aluminum.
Lens   12” Dia injection molded polycarbonate.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Optics
     ILR - Indirect Light Reflector
     LR - Louver Reflectors
     GR3 - Type 3 Glass Reflector
     GR5 - Type 5 Glass Reflector
6. Mounting Style
     & Arm Style
7. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
8. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
