Downloads
Specification Sheet

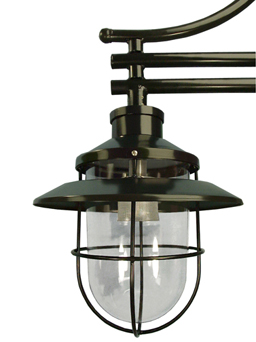

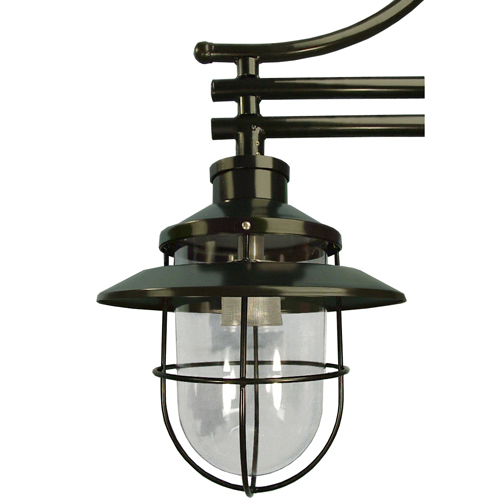

PEA

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness.
Hood   .090” thick aluminum.
Lens   12” Dia injection molded polycarbonate.
Guard   Heavy wall cast aluminum.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Arms   Extruded and/or cast aluminum.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Optics
     CL - Clear Lens
     WL - White Lens
     GR3 - Type 3 Glass Refractor
     GR5 - Type 5 Glass Refractor
6. Mounting & Arm Style
     & Arm Style
7. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
8. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
