PACIFIC LIGHTING & STANDARDS CO
Traditional | Decorative | Contemporary | Architectural | Low Pressure Sodium | Wall and Ceilings | Bollards | Poles | Base Covers | Arms


Downloads
Specification Sheet

AC

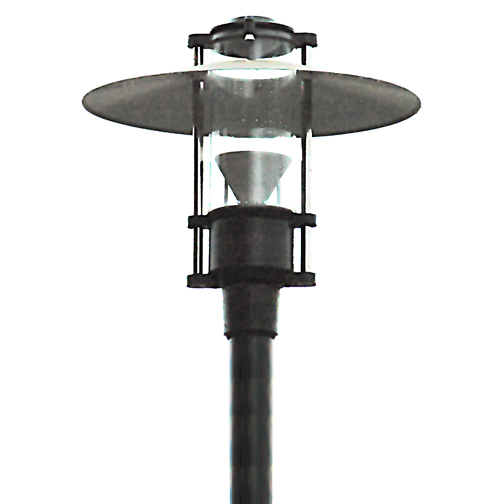

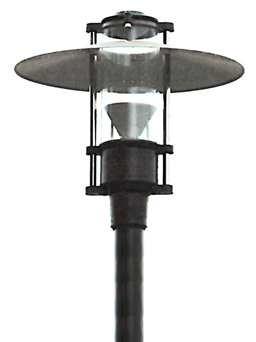

Product Details
Housing   1/8” thick spun aluminum hood with (2) 1” O.D. extruded aluminum supports and cast aluminum pole fitter.
Lens   8” DIA injection molded polycarbonate.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Reflector   Segmented specular Alzak, available on type 1, 2, 3, FT and 5 light distribution.
Arms   Extruded and/or cast aluminum.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.


Variant Options
