PACIFIC LIGHTING & STANDARDS CO
Traditional | Decorative | Contemporary | Architectural | Low Pressure Sodium | Wall and Ceilings | Bollards | Poles | Base Covers | Arms


Downloads
Specification Sheet

BS

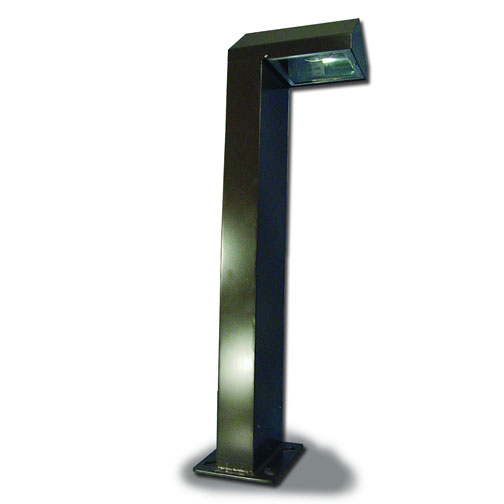

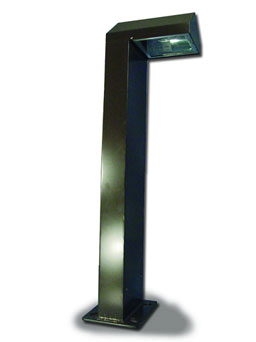

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness top and .125” wall thickness, extruded aluminum bottom section.
Lens   3/16” thick clear tempered glass.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Anchor Bolts   (4) 1/2”x 12”x 2” galvanized on 8” bolt circle
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     IN - Incandescent
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
6. Option
     FS - Fuse
