PACIFIC LIGHTING & STANDARDS CO
Traditional | Decorative | Contemporary | Architectural | Low Pressure Sodium | Wall and Ceilings | Bollards | Poles | Base Covers | Arms


Downloads
Specification Sheet

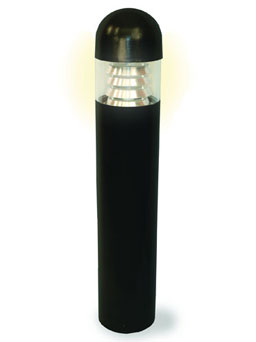

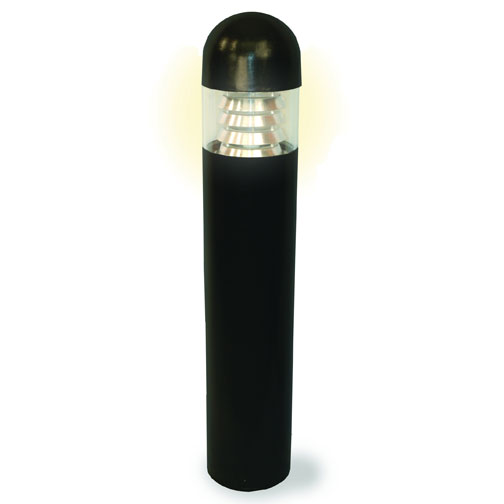

BEF

Product Details
Housing   .125”  thick extruded aluminum.
Lens   Impact resistant acrylic cylinder.
Reflector   Specular aluminum louvers.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Anchor Bolts   (3) 1/2”x 12”x 2” galvanized on 5 1/2” bolt circle
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     IN - Incandescent
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
6. Option
     HS - House Shield
     FS - Fuse

Variant Options
