Specification Sheet

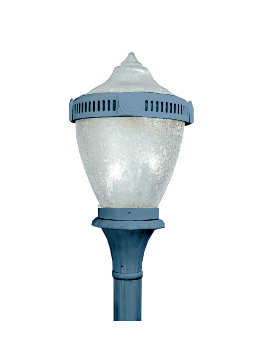

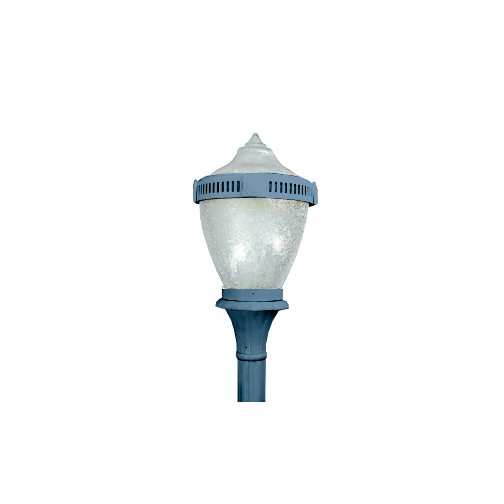

WV

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness.
Acorn   UV stabilized clear textured polycarbonate or prismatic type 3 and 5 light distribution. available; consult factory.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Optics
     GR3 - Type 3 Glass Refractor
     GR5 - Type 5 Glass Refractor
     LR - Louver Reflector
6. Mounting
7. Arm Style
8. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
9. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
