Downloads
Specification Sheet

WP

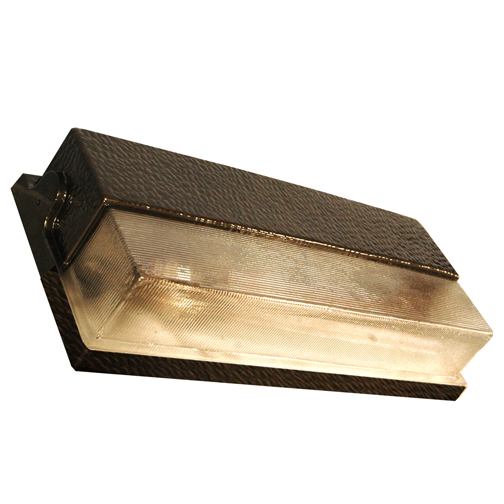

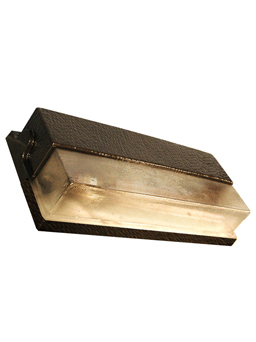

Product Details
Mounting Plate   Heavy wall casting aluminum.
Lens   Vacuum formed clear prismatic polycarbonate bottom section, black or bronze polycarbonate.
Reflector   Specular aluminum.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     L - Low Pressure Sodium
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
6. Option
     PC - Photo Cell
